Flexible rain garden system for streets, highways and development schemes
HydroPlanter Flex is a fully integrated rain garden system designed to simplify the delivery of sustainable drainage within streets, highways and development projects. Developed in response to demand for larger rain gardens and greater flexibility of shape, the system provides a complete package of components within a single coordinated solution.
Rain gardens are increasingly used to support the four pillars of SuDS: water quantity, water quality, amenity and biodiversity. HydroPlanter Flex helps designers deliver these benefits through a cost-effective and highly adaptable planted drainage system suitable for both retrofit and new-build applications.
Simple to design and adapt to site constraints, HydroPlanter Flex reduces complexity during specification, design and installation while helping projects meet regional SuDS requirements.
HydroPlanter Flex is designed for projects requiring greater flexibility than conventional modular rain garden systems. The system allows rain gardens to be adapted to available space while maintaining a coordinated package of hydraulic, planting and drainage components.
Suitable for highways, developments and public realm projects, HydroPlanter Flex can be configured around site constraints while supporting stormwater management close to source.
By combining drainage, planting and engineered system components within a single solution, HydroPlanter Flex helps simplify the delivery of nature-based SuDS infrastructure.
Comprehensive package of components within a single system

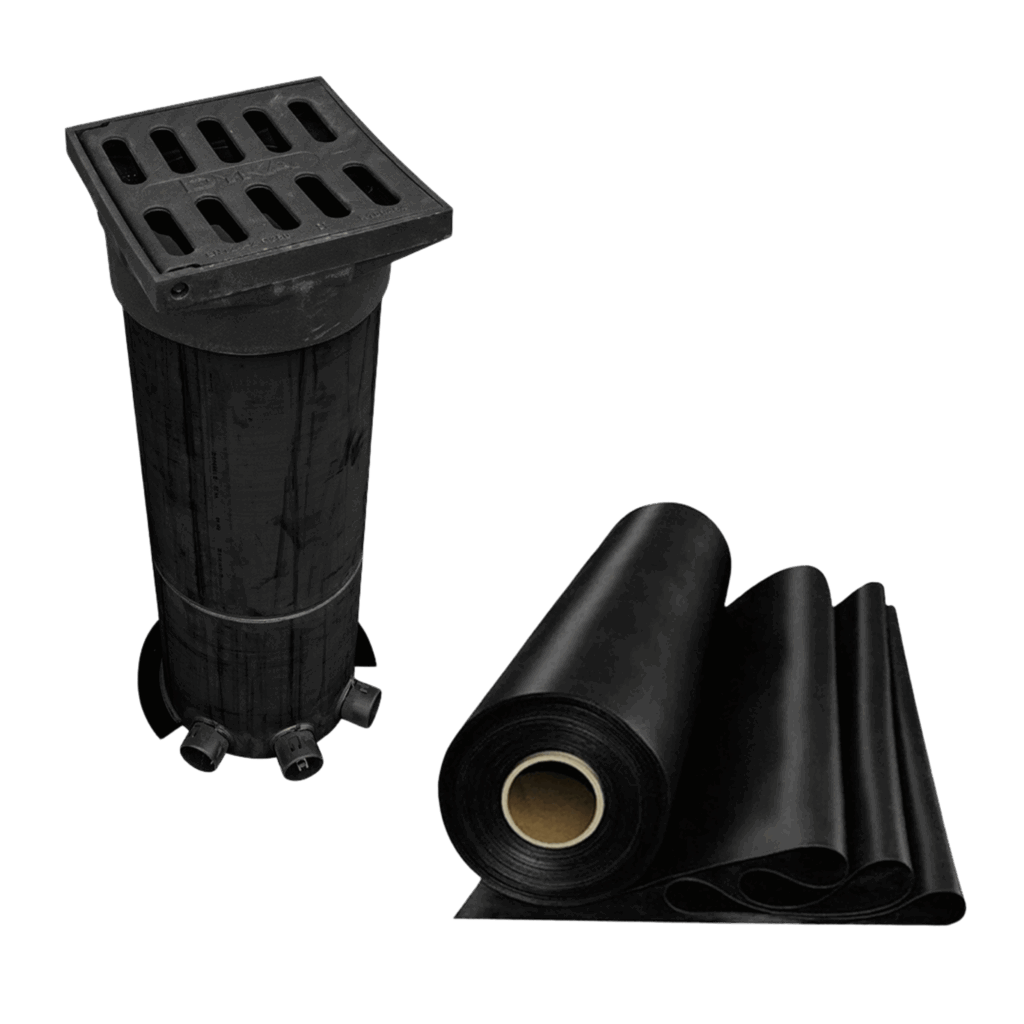

Impermeable liner, drainage stone, bioretention soil and pipework
Integrated exceedance chamber for overflow and maintenance access
Available as infiltration or non-infiltration systems
Adaptable layouts suited to site constraints
Full design and specification support available

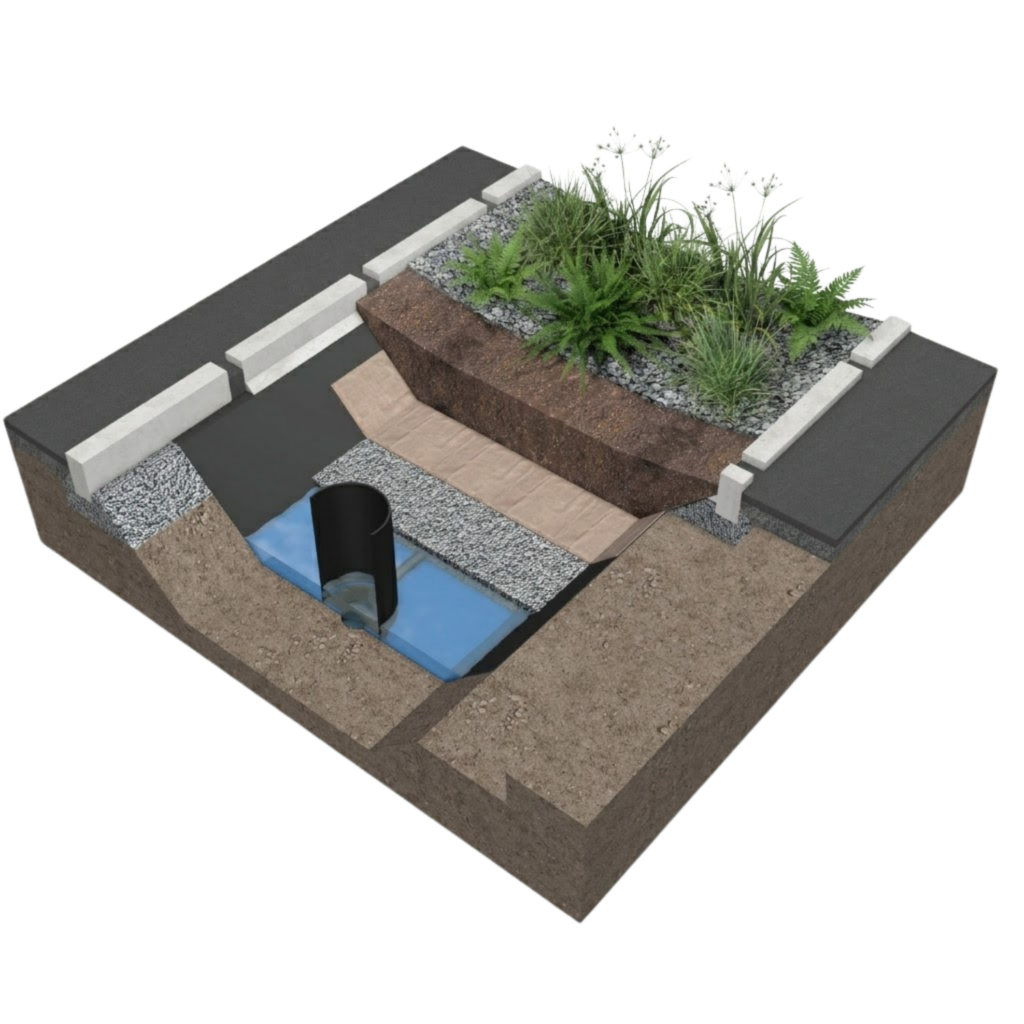

HydroPlanter Flex combines engineered drainage components, bioretention media and planting within a fully integrated rain garden system. Each installation includes the key elements required to support attenuation, treatment and controlled drainage performance.
HydroPlanter Flex combines stormwater management, planting and integrated system design to help deliver sustainable drainage within constrained urban environments.
Selecting the right HydroPlanter system depends on the available space, hydraulic requirements and whether infiltration is appropriate.
HydroPlanter Flex forms part of GreenBlue Urban’s wider HydroPlanter rain garden range, providing a more adaptable solution for projects requiring greater flexibility of shape and layout.

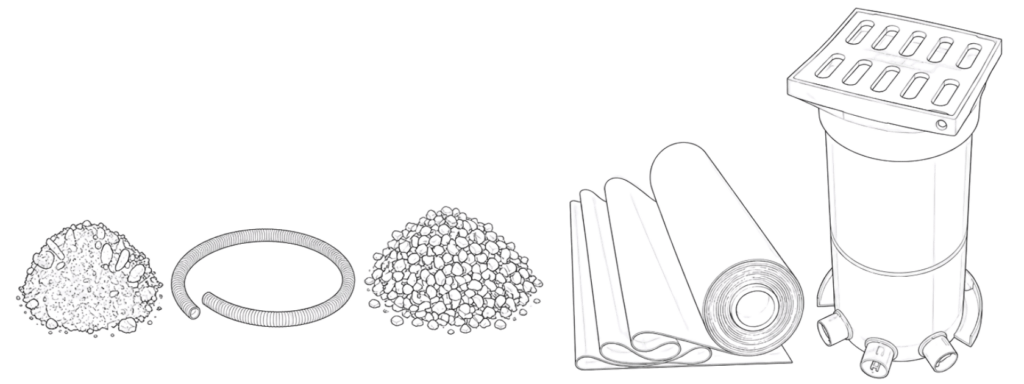

HydroPlanter provides a modular rain garden solution for standard installations, while HydroPlanter Max is designed for projects requiring larger rain garden features and increased water storage capacity.
HydroPlanter Flex bridges the gap between these approaches, allowing rain gardens to be shaped and configured around site-specific constraints while maintaining the benefits of an integrated system.

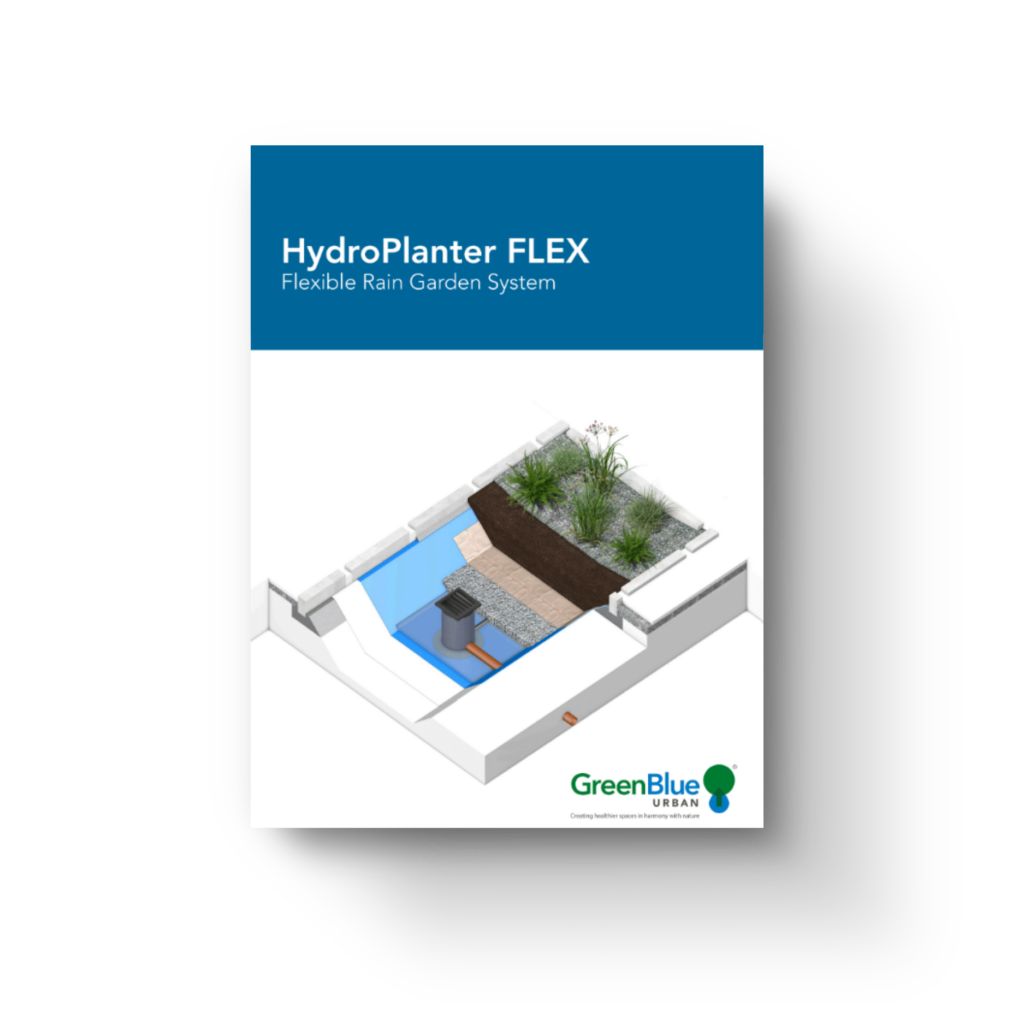

Access detailed guidance covering HydroPlanter Flex design, installation, specification and application within SuDS and urban drainage projects, with practical information to support successful delivery from design through to construction.
CPDs, design guidance and technical documentation used during specification and project delivery.
Need help selecting the right solution for your project?
Whether you require technical guidance, specification support, CAD details or product information, our team is here to help.
Complete the form and we’ll be in touch.
HydroPlanter Flex is an integrated, shape-adaptive rain garden system for sites where a conventional rectangular module does not fit the available layout. It brings together liner, drainage aggregate, bioretention soil, pipework and an exceedance chamber within a coordinated design. The system can follow irregular spaces while maintaining defined attenuation, treatment, outlet and maintenance functions.
Flex is useful where the rain garden needs to respond to curves, changing widths, existing utilities, street geometry or a bespoke landscape design. A standard HydroPlanter may be more efficient where repeatable modules fit the site, while MAX is intended where higher storage is the main requirement. The choice should reflect layout, hydraulic performance, constructability and maintenance rather than appearance alone.
Yes. It can be configured as an infiltration or non-infiltration system. Where infiltration is unsuitable because of ground conditions, contamination, groundwater, foundations or other constraints, an impermeable liner and controlled drainage route can be included. Infiltration should only be adopted where testing and the drainage strategy confirm it is appropriate; the system still requires an overflow and exceedance approach.
