Designing tree pits that function effectively as part of a drainage strategy presents several technical challenges. Urban tree pits must support healthy root development while also managing water flows from surrounding paved surfaces.
Key design considerations include:
Urban areas increasingly require effective solutions to manage surface water while improving environmental quality. Trees can contribute to sustainable drainage by intercepting rainfall, storing water within soil volumes and supporting evapotranspiration.
When integrated into drainage design, tree pits can function as part of a wider SuDS strategy while also delivering the benefits associated with urban tree canopy.
Reduction of surface water runoff
Temporary storage of stormwater within soil volumes
Improved water infiltration and filtration
Urban cooling and environmental improvement
Increased tree canopy and biodiversity
Integrating trees within sustainable drainage systems allows green infrastructure and water management to work together.
SuDS tree pits combine tree planting infrastructure with drainage components that allow stormwater to enter and be stored within the soil system. Surface water from surrounding paved areas can be directed into the tree pit where it is temporarily stored and filtered through the soil.
The tree and surrounding soil then contribute to water management through:
Systems such as ArborFlow integrate tree planting infrastructure with sustainable drainage within a coordinated system.
Controlled inflow of surface water into the tree pit
Storage of stormwater within engineered soil volumes
Integration with structural soil cell systems where required
Compatibility with standard pavement construction methods
Flexibility to adapt to site conditions and drainage strategies

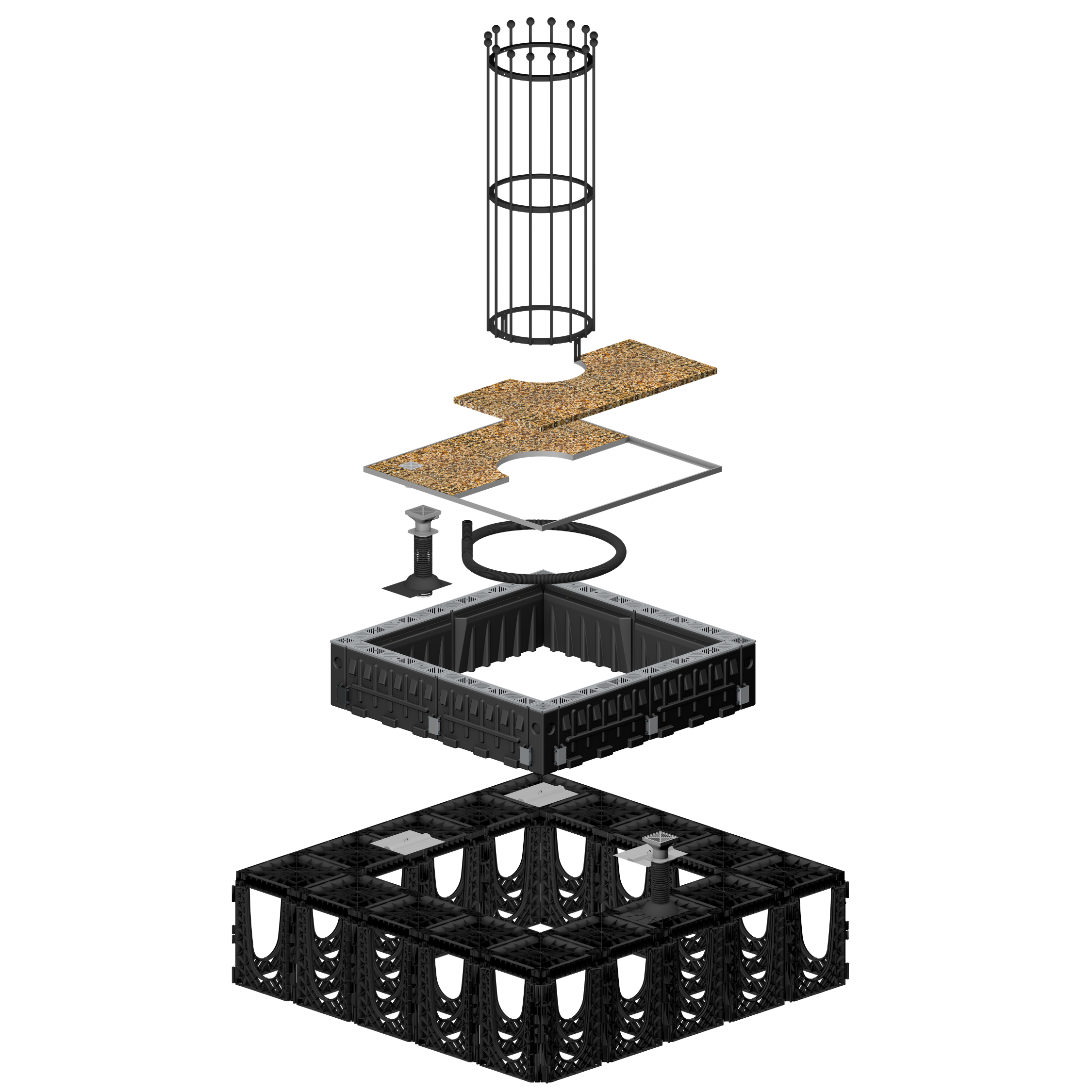

Successful SuDS tree pit systems combine several infrastructure components working together. These elements allow stormwater to enter, move through and be managed within the system, while also supporting healthy tree growth and maintaining pavement performance.
Typical components may include structural soil cell systems, drainage and distribution components, irrigation and aeration infrastructure, root management and protection systems, and surface finishes such as tree grilles and guards.
Soil cell systems designed to protect uncompacted soil beneath hard surfaces.
Attenuation modules designed to store and distribute water within ArborFlow systems.
SuDS tree surround designed to capture, store and direct surface water into the tree pit
Root management systems designed to guide growth and reduce surface conflict
Systems that support healthy root conditions through irrigation and oxygen exchange
Geotextiles and membranes supporting soil separation, filtration and ground stability
Integrating tree pits within drainage infrastructure requires coordination between landscape design, drainage engineering and construction requirements.
Early engagement during the design stage helps ensure tree pits are correctly sized and incorporated into the wider drainage strategy.
GreenBlue Urban regularly supports designers and engineers with:
GreenBlue Urban polypropylene systems are manufactured using 100% recycled material derived from post-industrial and post-consumer sources, transforming existing resources into durable urban infrastructure. By keeping valuable materials in use for longer, we support a more circular approach to construction while reducing waste and helping to strengthen UK recycling and manufacturing industries.
Designed for demanding public realm applications, these systems deliver the durability and performance required for long-term use. Selected products are also supported by independently verified Environmental Product Declarations (EPDs), providing transparent environmental data to support informed specification and responsible procurement.
This is infrastructure built on the principle that materials still have value long after their first use.
Need help selecting the right solution for your project?
Whether you require technical guidance, specification support, CAD details or product information, our team is here to help.
Complete the form and we’ll be in touch.
A SuDS tree pit is a designed rooting environment that also forms part of the surface-water drainage strategy. Runoff from surrounding hard surfaces is intentionally directed into the system, where it can be slowed, filtered, stored and made available to the tree. Excess water then leaves by infiltration, controlled discharge or another designed route. It must support healthy tree growth as well as hydraulic performance.
Water enters through a defined inlet, then passes through planting or bioretention soil and any distribution, storage and filtration layers included in the design. Some water is retained within the rooting environment and used by the tree. The remaining flow leaves through the specified drainage route. Inlet levels, storage, soil permeability, overflow and outlet control need to be coordinated so the system performs during both ordinary and extreme rainfall.
Calculations normally consider the contributing catchment, design rainfall, inflow rate, available storage, infiltration where applicable, soil or media permeability, outlet rate, drawdown time and exceedance route. The tree’s soil-volume requirement must also be protected. The appropriate method and design events depend on the wider drainage strategy, approving authority and project stage, so a SuDS tree pit should be hydraulically modelled as part of the site system.
They can help by intercepting runoff close to source, reducing peak flow and delaying the volume reaching downstream drainage. Soil filtration and tree uptake can provide additional water-quality and environmental benefits. Their contribution depends on catchment size, storage, outlet design and the number and distribution of pits. They should be used as defined drainage assets within a wider strategy, not treated as an unquantified greening feature.
